Модель: Battery System
марка: ХТД
Место происхождения: КИТАЙ
Позиционирование продукта:

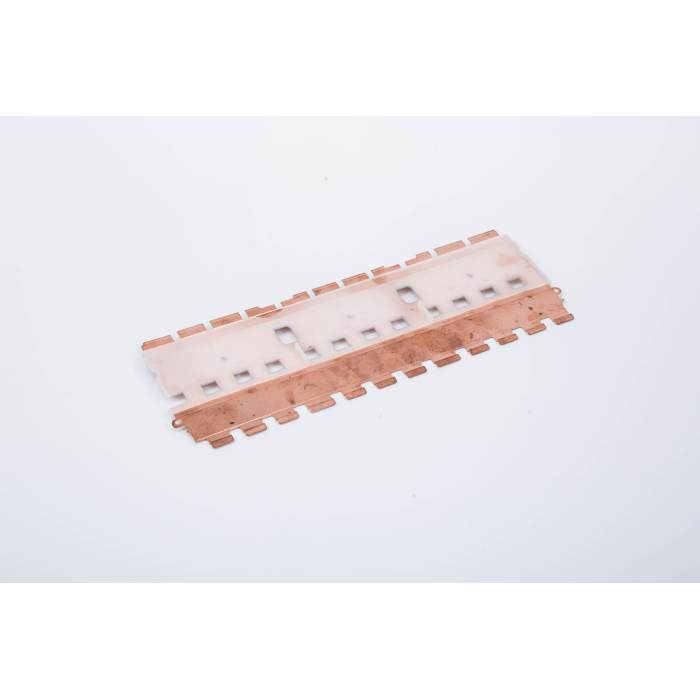

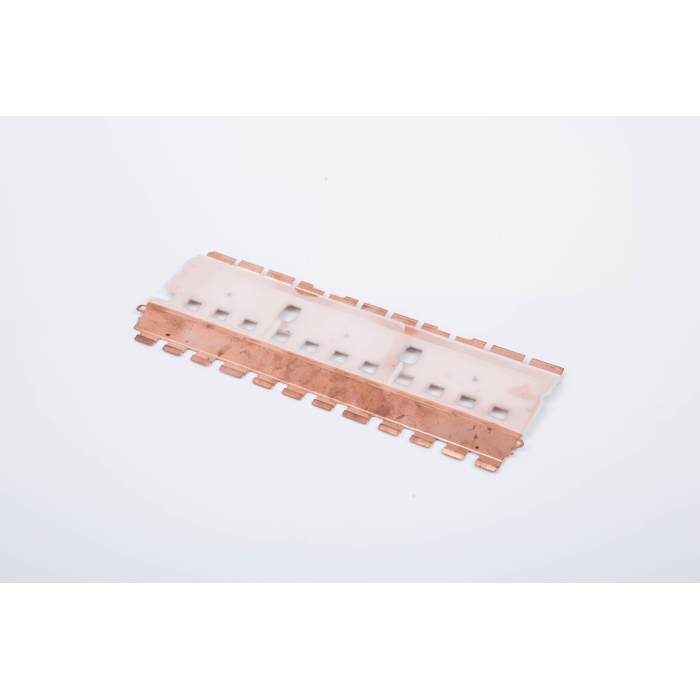

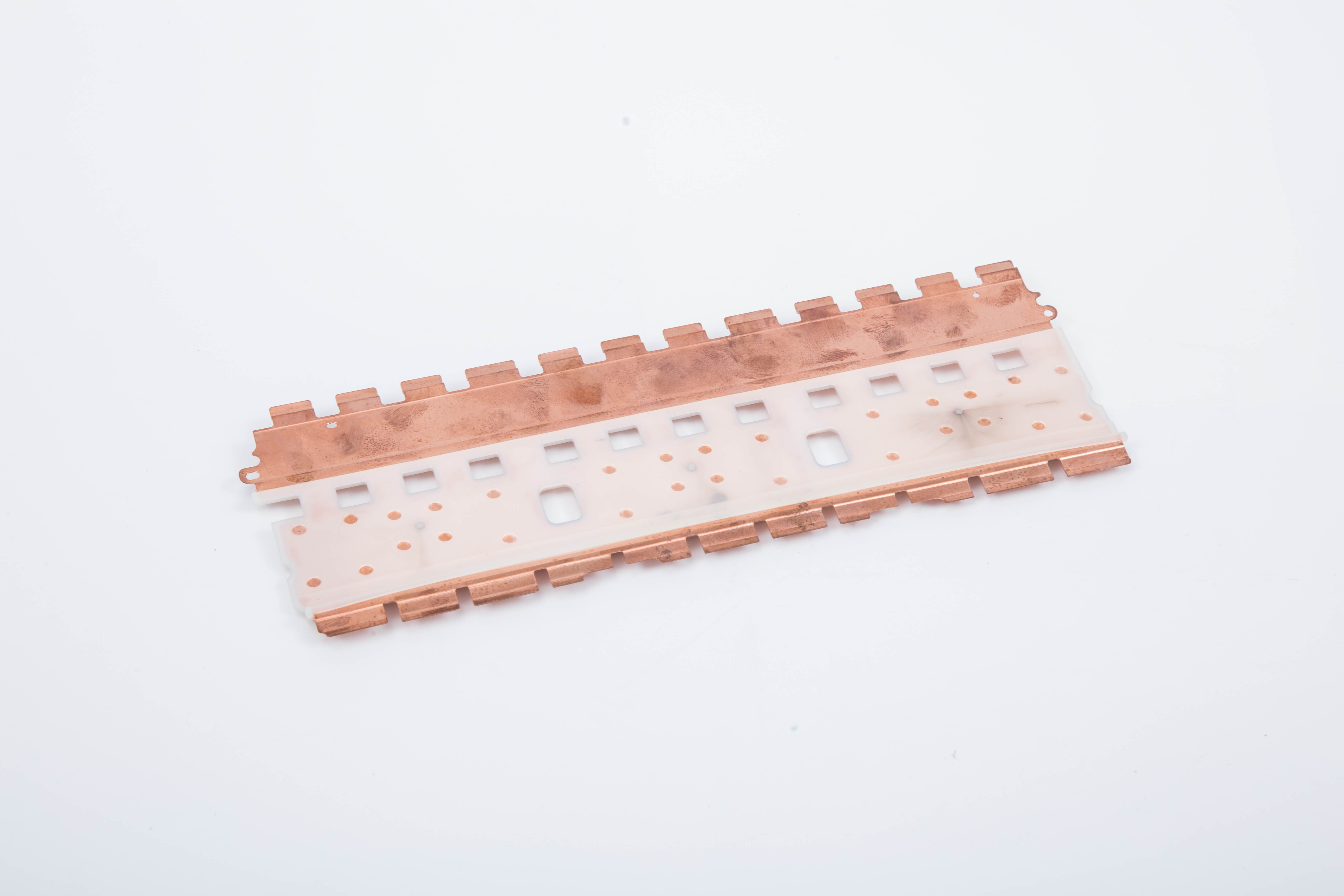

Интегрированная сенсорная шина HTD — это интеллектуальный компонент внутри аккумуляторного модуля, который обеспечивает интегрированный сбор тока, выборку напряжения и сбор сигналов температуры. Благодаря интеграции гибких печатных плат (FPC), медных/алюминиевых проводников и изоляционных структур он заменяет традиционные дискретные жгуты проводов. Он выполняет функции сильноточной шины, одновременно собирая сигналы напряжения и температуры элементов в режиме реального времени и передавая их в систему управления батареями (BMS). Это ключевой компонент для повышения интеллекта, точности управления и безопасности аккумуляторной батареи.
Ключевые параметры производительности вставного формования :
| Category | Specific Parameters | Test Standard |
| Signal Acquisition Component | FPC/FFC flexible circuit (PCB optional), supports simultaneous voltage/temperature acquisition | IEC 60664-1 |
| Conductive Material | Aluminum busbar (AL1000 series) or copper-clad aluminum composite, Cu layer 30%-40% | ASTM B209 |
| Sampling Accuracy | Voltage sampling error ≤ ±1mV; Temperature sampling accuracy ±1% (NTC/PTC) | ISO 21782 |
| Insulation & Withstand Voltage | Insulation layer withstand voltage ≥2500V AC, Protection level IP67 | ISO 20653 |
| Integration Process | Laser welding (depth ≥0.5mm) or bolted connection (torque accuracy ±0.5N·m) | IEC 60947 |
| Insulation Treatment | Hot-pressed insulating film/Injection molded bracket/Vacuum formed spacer, customizable | UL 94 V-0 |
| Operating Temperature |
-40°C to +125°C (FPC component);
-40°C to +150°C (Aluminum busbar)
|
GB/T 28046 |
| Lightweight Design |
Over 50% weight reduction and 60% volume reduction compared to traditional wiring harness solutions |
Real-vehicle validation |

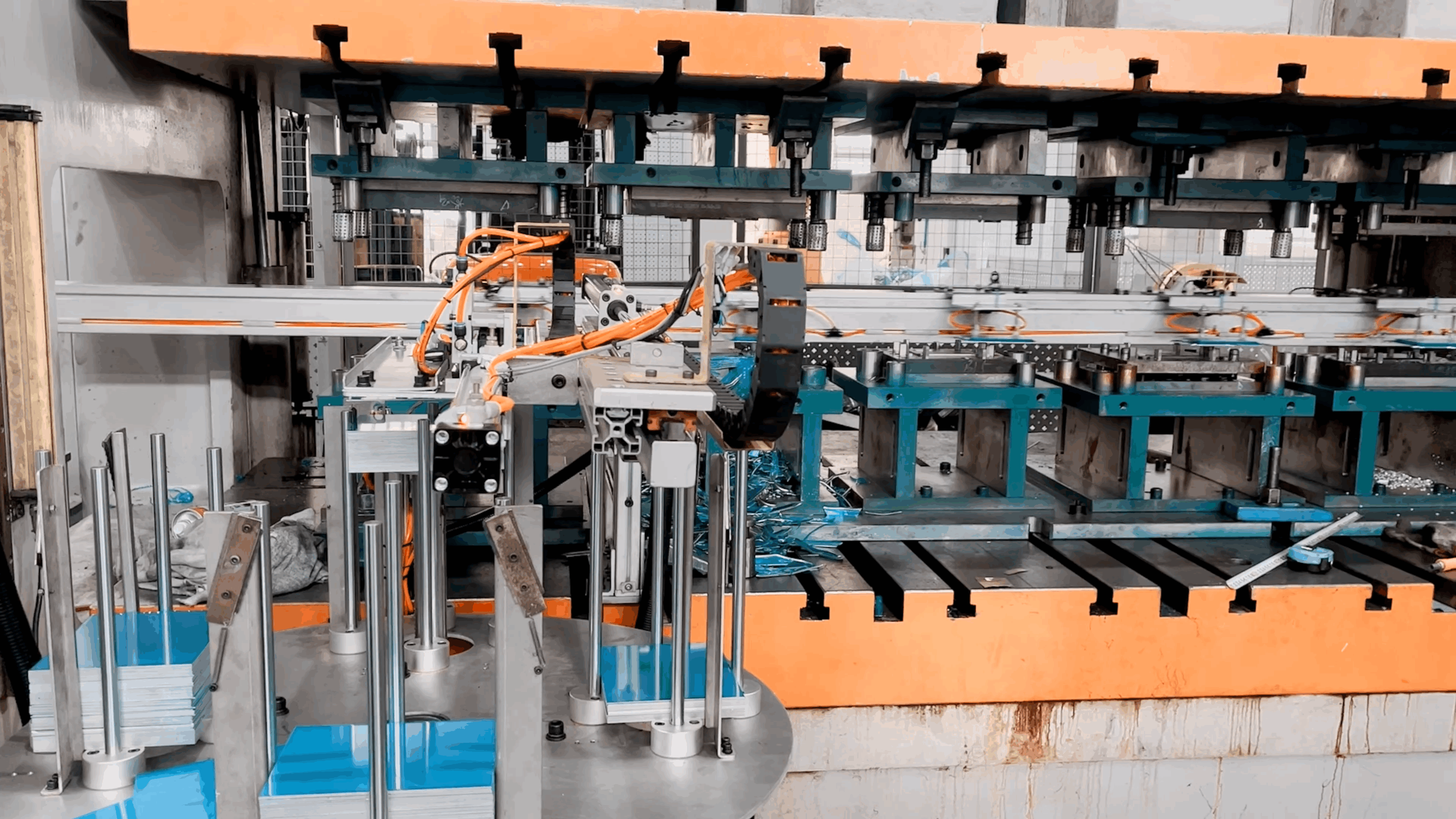

| Step | Core Process | Key Technical Points | Output Standard |
| 1 | FPC Circuit Fabrication | R2R micro-etching, trace width/spacing accuracy ±0.05mm | Impedance consistency ≤ 3% |
| 2 | Component Mounting & Soldering | SMT + reflow soldering, NTC weld porosity < 5% | Sampling accuracy ±1% |
| 3 | Busbar & FPC Integration | Hot-press film lamination or injection molded bracket fixation | Insulation withstand voltage ≥2500V |
| 4 | Laser Welding & Inspection | Welding hole positioning for nickel sheets, X-Ray inspection of weld quality | False welding rate < 0.1% |
| 5 | Full Function Test | Continuity/Insulation withstand voltage/NTC temperature drift test, MES data traceability | Defect rate ≤ 0.1% |
